AP-1950 & AP-Z1950 50mm Wide-Coverage Refillable Empty Paint Markers (30ml)
The AP-1950 and AP-Z1950 are empty, refillable marker barrels built for broad-stroke marking, graffiti handstyles, and large-format layout work.
Fitted with a 50mm (2-inch) felt block nib and a spring-loaded pump valve, these 30ml empty shells give paint manufacturers, art supply brands, and industrial distributors a reliable housing for custom acrylics, solvent inks, and liquid chalk. Both markers feature translucent polypropylene (PP) bodies for quick fluid visibility, internal steel mixing balls to break up settled pigments, and screw-off nib housings for clean refills.
Specifications & Model Comparison
| Model | Tip Size | Nib Material | Mechanism | Capacity | Dimensions (L x Dia.) | Cap Width | Material | MOQ | Key Design Feature | Applications |
|---|---|---|---|---|---|---|---|---|---|---|

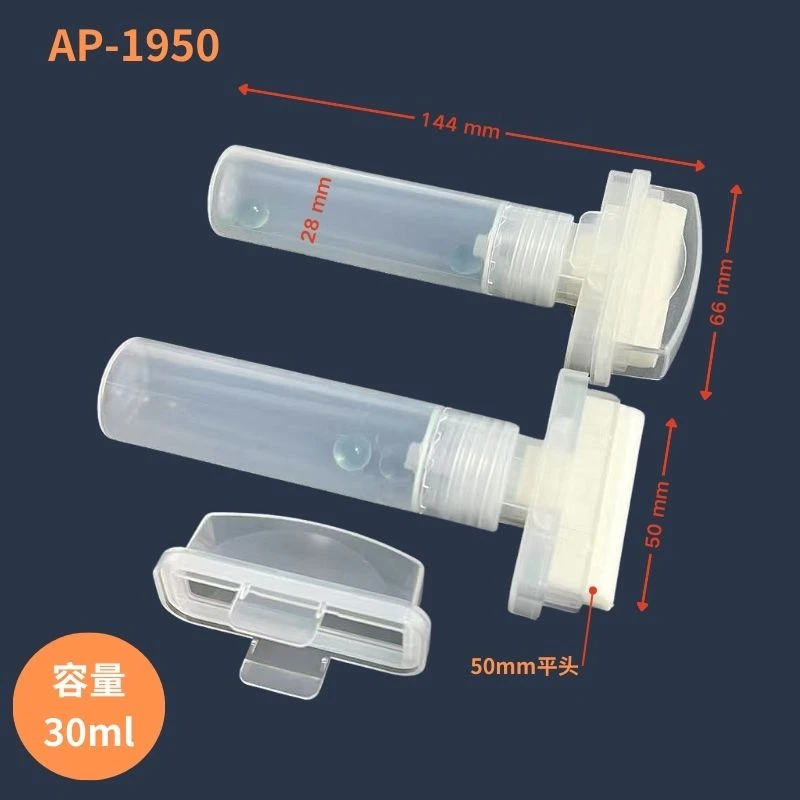

| AP-1950 | 50mm Flat | High-Density Synthetic Felt | Spring-Loaded Pump Valve | 30 ml | 144 mm x 28 mm | 66 mm | Solvent-Resistant PP | 1,000 | Classic T-Bar Cap: Wide grip leverage for quick uncapping with work gloves | Graffiti handstyles, street art tags, poster layouts, industrial marking |

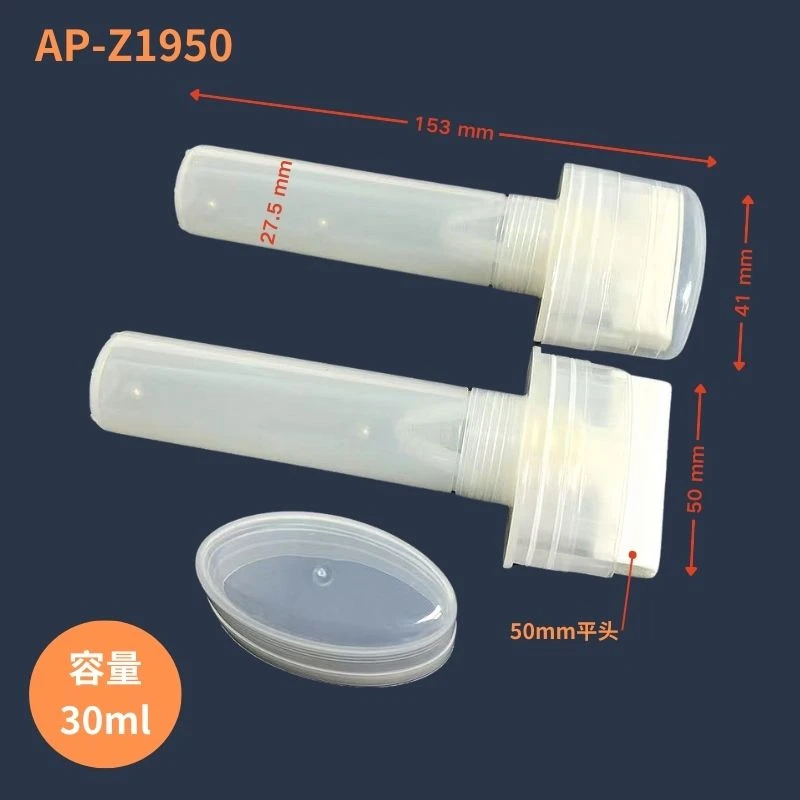

| AP-Z1950 | 50mm Flat | High-Density Synthetic Felt | Spring-Loaded Pump Valve | 30 ml | 153 mm x 27.5 mm | 41 mm | Solvent-Resistant PP | 1,000 | Streamlined Oval Cap: Compact profile for easy pouch and pocket storage | Street calligraphy, portable custom paint pens, display boards |
True 50mm Felt Block Nib: Dense synthetic felt tip holds its edge under firm pressure on concrete, metal, wood, and glass.
Fills large surfaces fast without splitting or fraying.
Controlled Pump-Action Outflow: Pressing the nib depresses an internal spring valve to prime the tip with fresh paint. Releases fluid only when pumped, stopping runs, drips, and leaks during storage or transport.
Two Ergonomic Cap Styles:
AP-1950: Wide 66mm cap head provides extra leverage for quick uncapping with work gloves.
AP-Z1950: Narrower 41mm cap profile makes storage in tool pouches or pockets easier.
Solvent-Safe PP Construction: Clear plastic casing withstands aggressive paint thinners, alcohol, and water-based formulas without cracking or turning cloudy.
Heavy Agitation Balls Included: Built-in steel mixing balls quickly re-blend separated paint pigments with a brief shake before use.
Applications ：
Street Art & Calligraphy, Ideal hardware for bold tags, broad canvas backgrounds, posters, and outdoor murals.
Industrial & Lumber Marking: Practical tool for color-coding shipping containers, marking raw timber, steel plates, and factory floors.
Retail Signage & Glass Art: Suitable for temporary promotional lettering on shop windows, auto dealer windshields, and chalkboards.
Private Label Fillings:Ready-to-fill empty marker hardware for ink makers, art supply wholesalers, and e-commerce sellers.
Pre-Production Samples: Physical empty samples supplied for flow testing and chemical compatibility checks prior to mass production.
Direct Source Factory: Eliminate middleman costs by buying straight from our Shenzhen production line.
Full-Line Component Support: We produce everything from 0.7mm fine-point markers up to 50mm jumbo shells, along with matching nibs and valve hardware.
Quality Assured: Every batch undergoes leak and seal testing to prevent failure during international shipping.
Global Shipping Experience: Full support with chemical shipping documentation, customs clearance, and global freight handling.
How to Fill and Operate
1. Unscrew the 50mm nib housing from the clear barrel.
2. Pour up to 30ml of mixed paint or ink into the reservoir.
3. Screw the nib assembly back on firmly.
4. Shake the marker to engage the mixing balls.
5. Depress the felt tip against a scrap surface several times until paint fully saturates the 50mm edge.
6. Replace the cap firmly after each use.
